Vacuum hose diagrams, May 2002
These were based on the existing hose locations on my truck, and do not show the California and High Altitude variants.

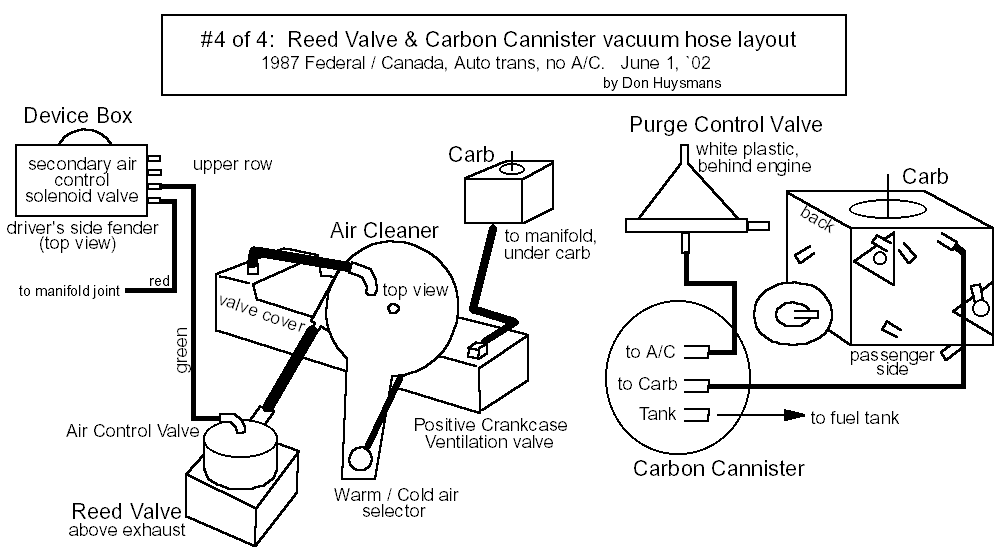

This diagram (4 of 4) intends to show the reed valve, and carbon cannister systems.

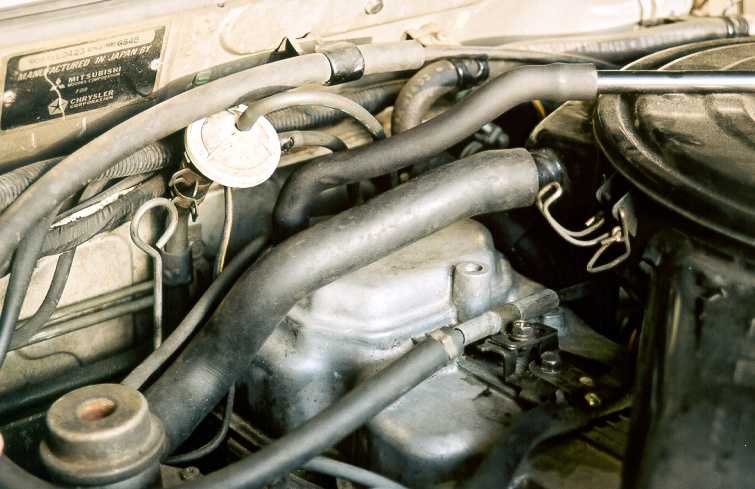

The reed valve is above the exhast, on the passenger side of the vehicle. Visible in the lower left of this image.

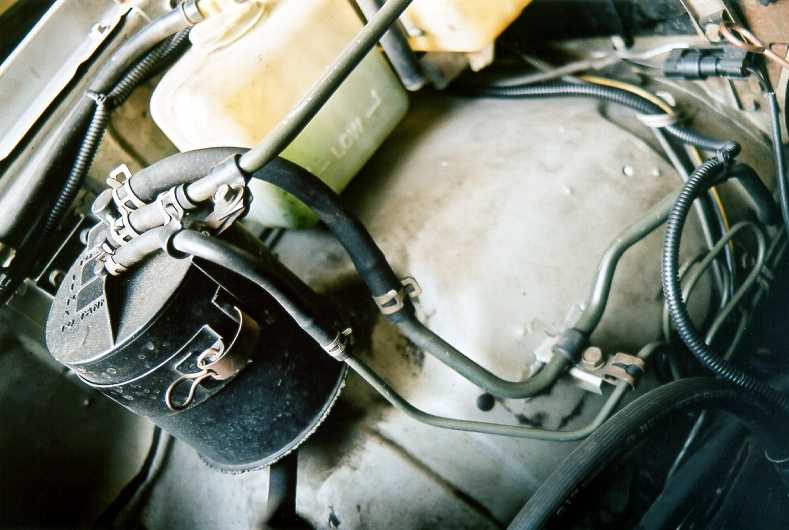

The carbon cannister is located at the front of the engine compartment, on the passenger side of the truck.
