To improve rocker skid ground clearance, and make room for larger tires and other future mods, these 2" UMHW were installed.
A relatively easy mod, with only the heater core hoses needing to be changed for longer ones.

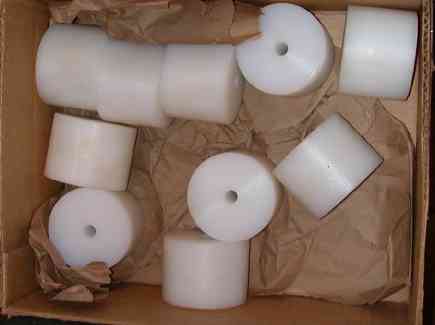

These are the 10 blocks required for the 1987 2 door model, included all the bolts as well.

After removing the body mount nuts, checking the brake lines, removing the heater core rad hoses, the body was lifted.

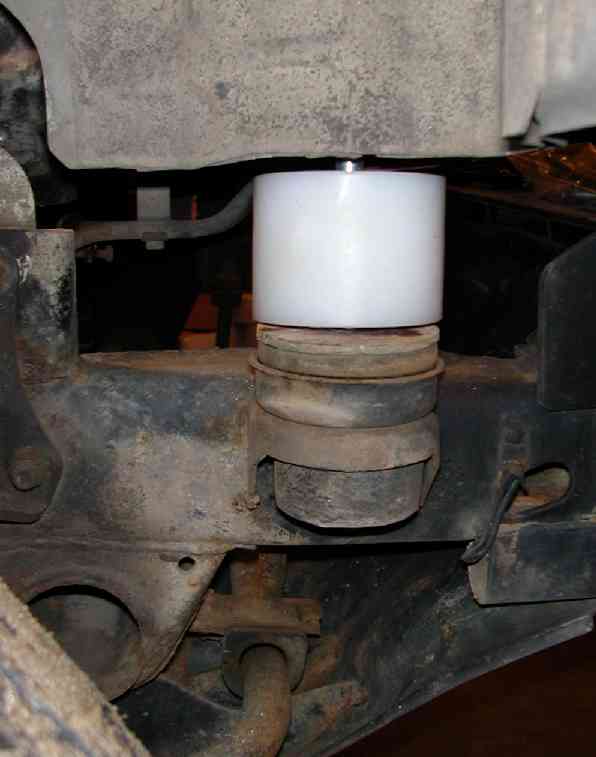

And the 2" UHMW blocks added into the existing stack of cushions and washers. Then the new longer bolts were used to re-attach.

The other unknown was the transfer-case shifter. But all's well, it's shorter, but still has enough room for its full range!

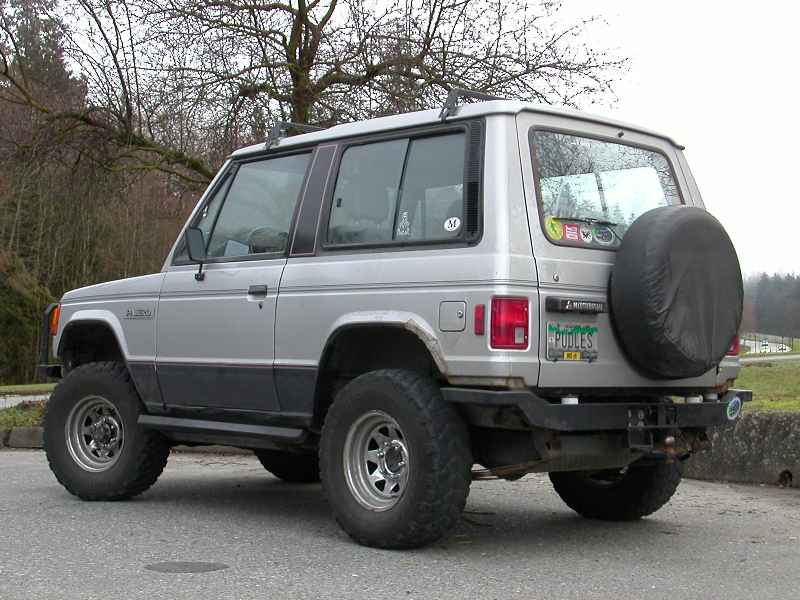

All done! Now the bumpers and rocker panel skids are too low!
